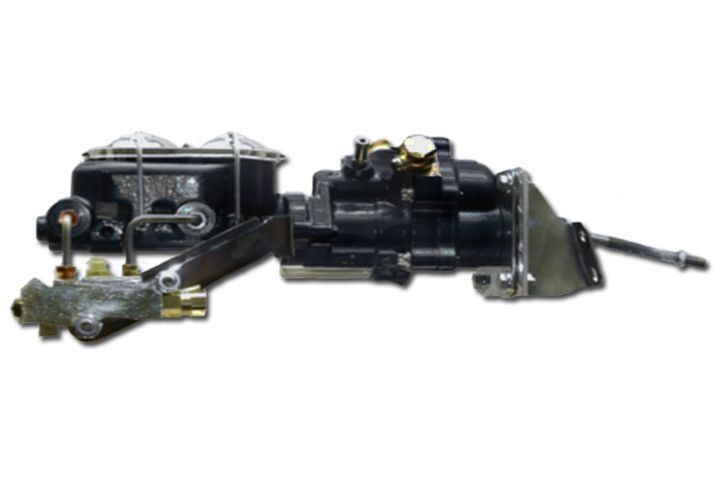

This Hydro-Boost hydraulic power brake booster is a retrofit for 1964-1972 Chevelles.
The answer to all of the problems associated with high performance vehicles. The Bosch Hydro-Boost is smaller than the 7" hot rod booster and can generate 1200 to 2000 psi at the calipers. It accepts master cylinders from 15/16" to 1 5/8" bore sizes. We stock factory replacements but also new units and then build them for retro-fit / conversion for vehicles that didn't come with them.
The Hydro-Boost is powered by pressure from the power steering pump and requires no vacuum. The other option is a vacuum pump with a small bore master cylinder that jacks up the pressure to the calipers, but small bore masters won't put out the volume needed to fill caliper pistons, and vacuum pumps won't keep up. You can also spend a lot of money on great big calipers, but they tend to be more demanding of volume and pressure, so they don't work unless you have a Hydro-Boost. It provides great valve cover clearance, and exhaust pipe clearance when frame mounted. The Hydro-Boost fits any where a vacuum booster does. It can use stainless braided hoses or rubber type. We have many direct replacements, our own retrofit applications, and can design anything else.
Hydro-Boost® is a registered trademark of the Robert Bosch Corp. and we claim no ownership to it. We source, buy, rebuild and resell them, and/or modify them for retrofit.
